Nodes
AddTimeCode
AddTimeCode — pass-through that keeps the timecode knobs.
| Node | AddTimeCode |
|---|---|
| Type id | OC_N_addtimecode |
| Menu | Other › AddTimeCode |
| Nuke class | AddTimeCode |
| Code | opencomp_core/nodes/utility/metadata.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |

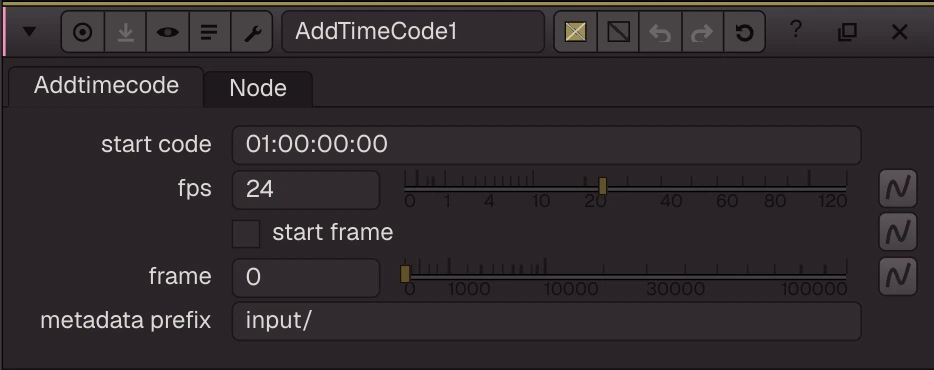

Knobs
Panel tab Addtimecode, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
startcode | start code | text | 01:00:00:00 | startcode | ||
fps | fps | float | 24 | 0 to 120 | fps | |
useFrame | start frame | bool | false | useFrame | ||
frame | frame | float | 0 | 0 to 100000 | frame | |
prefix | metadata prefix | text | input/ | prefix |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's AddTimeCode.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
