TimeBlur

TimeBlur — average the input over the shutter.

raw .md

TimeBlur — average the input over the shutter. Oink evaluates whole frames only: each sample time is rounded to its frame, so a shutter inside one frame gives that frame (sub-frame motion is not blurred).

NodeTimeBlur
Type idOC_N_timeblur
MenuTime › TimeBlur
Nuke classTimeBlur
Codeopencomp_core/nodes/utility/time_nodes.py

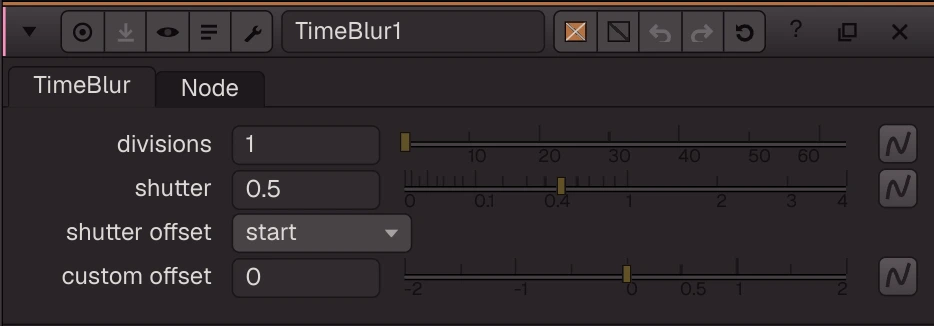

TimeBlur properties

Inputs and outputs

PortNameType
input 0Imageimage
output 0Imageimage

Knobs

Panel tab TimeBlur, in panel order.

KnobLabelTypeDefaultRange / valuesNuke knobDescription
divisionsdivisionsfloat11 to 64 (integer)divisions
shuttershutterfloat0.50 to 4shutter
shutteroffsetshutter offsetmenustartcentred, start, end, customshutteroffset
shuttercustomoffsetcustom offsetfloat0-2 to 2shuttercustomoffset

Other knobs (Python, .nk and the assistant; not on the panel)

KnobLabelTypeDefaultRange / valuesNuke knobDescription
gl_colorViewer Controls Colorfloat ×30, 0, 00 to 1
postage_stamp_frameStatic Frameint1-2147483648 to 2147483647
lifetimeStartLifetime Startint0-2147483648 to 2147483647
lifetimeEndLifetime Endint100-2147483648 to 2147483647
useLifetimeUse Lifetimebooleanfalse
cachedCachedbooleanfalse
bookmarkBookmarkbooleanfalse
dope_sheetDope Sheetbooleanfalse
clone_groupClone Groupstring
link_sourceLink Sourcestring
link_overridesLink Overridesstring
split_viewsSplit Viewsstring

Nuke equivalent

Imports from and exports to Nuke's TimeBlur.

Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.

Retime

Retime: Nuke's Retime.

TimeOffset

TimeOffset: moves a clip in time by time offset frames (positive = later; Mode sets whole or fractional frames); reverse input plays the input's frame range backwards.
