GeoMerge
GeoMerge node.
| Node | GeoMerge |
|---|---|
| Type id | OC_N_geomerge |
| Menu | 3D › GeoMerge |
| Nuke class | GeoMerge (also imports MergeGeo) |
| Code | opencomp_core/nodes/three_d/scene_ops.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | input1 | scene |
| input 1 | input2 | scene |
| input 2 | input3 | scene |
| input 3 | input4 | scene |
| output 0 | scene | scene |
Knobs

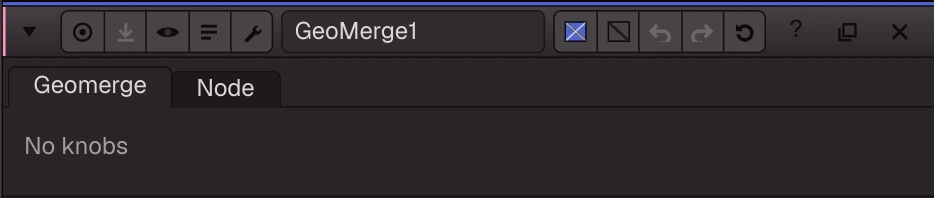

Knobs from the node definition (this node has no panel layout in the app yet).
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's GeoMerge (MergeGeo also import to it).
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
