Despill

Despill: removes green or blue spill by limiting the screen channel to what the other two allow: their average (balance) or their maximum (limit).

Node	Despill
Type id	`OC_N_despill`
Menu	Keyer › Despill
Nuke class	`Despill`
Code	`opencomp_core/nodes/keyer/despill.py`

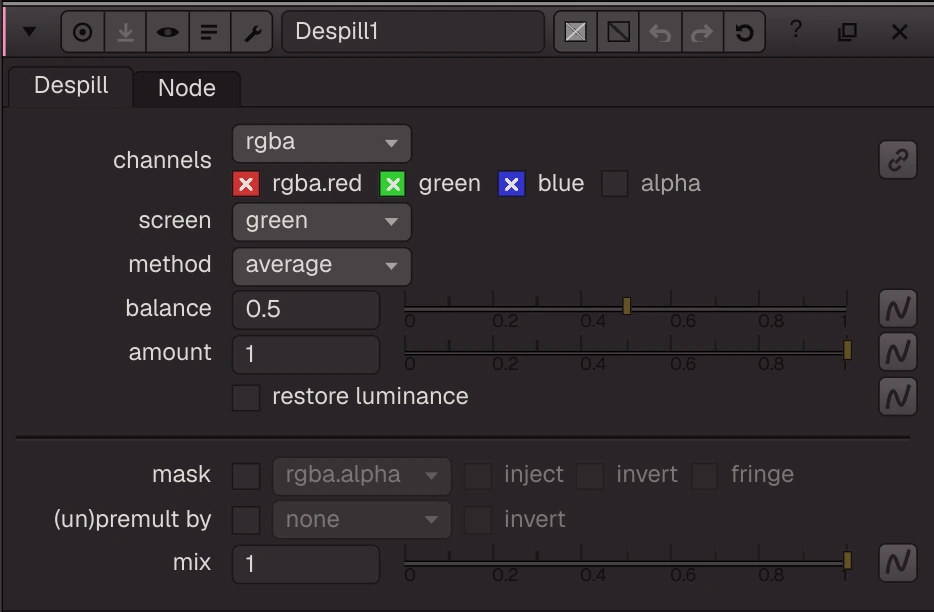

Despill properties

Inputs and outputs

Panel tab Despill, in panel order.

Knob	Label	Type	Default	Range / values	Nuke knob	Description
`channels`	channels	menu	`rgb`	rgba, rgb, alpha, all, none		Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch>
`screen_type`	screen	menu	`green`	green, blue	`screen_type`	green or blue.
`method`	method	menu	`average`	average, limit	`method`	average (balance mix of the other two) or limit (the larger of them).
`balance`	balance	float	`0.5`	0 to 1	`balance`	weight of red in the average.
`amount`	amount	float	`1`	0 to 1	`amount`	how much of the spill to remove.
`restore_luminance`	restore luminance	bool	`false`		`restore_luminance`	add the removed brightness back to all channels.
`mask_channel`	mask	menu	`none`	none, rgba.alpha, rgba.red, rgba.green, rgba.blue		Mask channel, e.g. rgba.alpha (none = no mask)
`inject`	inject	bool	`false`			Copy the mask into mask.a for nodes downstream
`invert_mask`	invert	bool	`false`		`invert_mask`
`fringe`	fringe	bool	`false`			Only apply the effect at the edges of the mask
`unpremult`	(un)premult by	menu	`none`	none, rgba.alpha
`invert_unpremult`	invert	bool	`false`			(Un)premultiply by 1 - alpha
`mix`	mix	float	`1`	0 to 1	`mix`

Knob	Label	Type	Default	Range / values
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string

Imports from and exports to Nuke's Despill. The standard Nuke mask knobs (channels, mask, invert, (un)premult, mix) are mapped too.

Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.

Open these from Help › Examples…, or from the ? menu in this node's Properties panel.

Greenscreen: ScreenKey, Despill, comp over a sky (examples/keying/greenscreen_key_despill.oink): Tears of Steel plate 08_3a (CC BY 3.0, Blender Foundation, mango.blender.org): an actor on a green screen that falls off towards the frame edges. ScreenKey pulls the key from a screen colour picked over the open screen (Ctrl+click or Ctrl+Shift+drag in the Viewer with its panel open), with screen gain 1.1 and clip black / white 0.1 / 0.9 for the uneven screen; its own despill is off so the Despill node (average) does it. The premultiplied result goes over a Poly Haven sky (CC0) reformatted to the plate. The same chain ships as the Keying ToolSet.
