AICleanPlate
AICleanPlate: removes the masked object (Mask = AIRoto / Roto / any alpha).
AICleanPlate: removes the masked object (Mask = AIRoto / Roto / any alpha). Process fills each masked pixel with the real background from the nearest frame where it is visible (optical flow, or exact pixels on a locked-off plate); optional stage 2 (Wan 2.1 VACE, Apache-2.0) generates only what no frame ever shows. Camera: auto, moving camera, locked-off or surface (markers). Layer cleanplate: r hole, g filled from frames, b generated, a confidence. Stage 2 model Auto picks the commercial model that fits the free GPU memory. It can also use MiniMax-Remover (research pack, non-commercial use only: accept its licence in the panel first); Stage 2 Fills = whole hole lets the model repaint the whole masked area.
| Node | AICleanPlate |
|---|---|
| Type id | OC_N_aicleanplate |
| Menu | AI › AICleanPlate |
| Nuke class | none: saved in .nk files as an Oink node |
| Code | opencomp_core/nodes/ai/aicleanplate.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Plate | image |
| input 1 | Mask | image |
| output 0 | Image | image |
Knobs

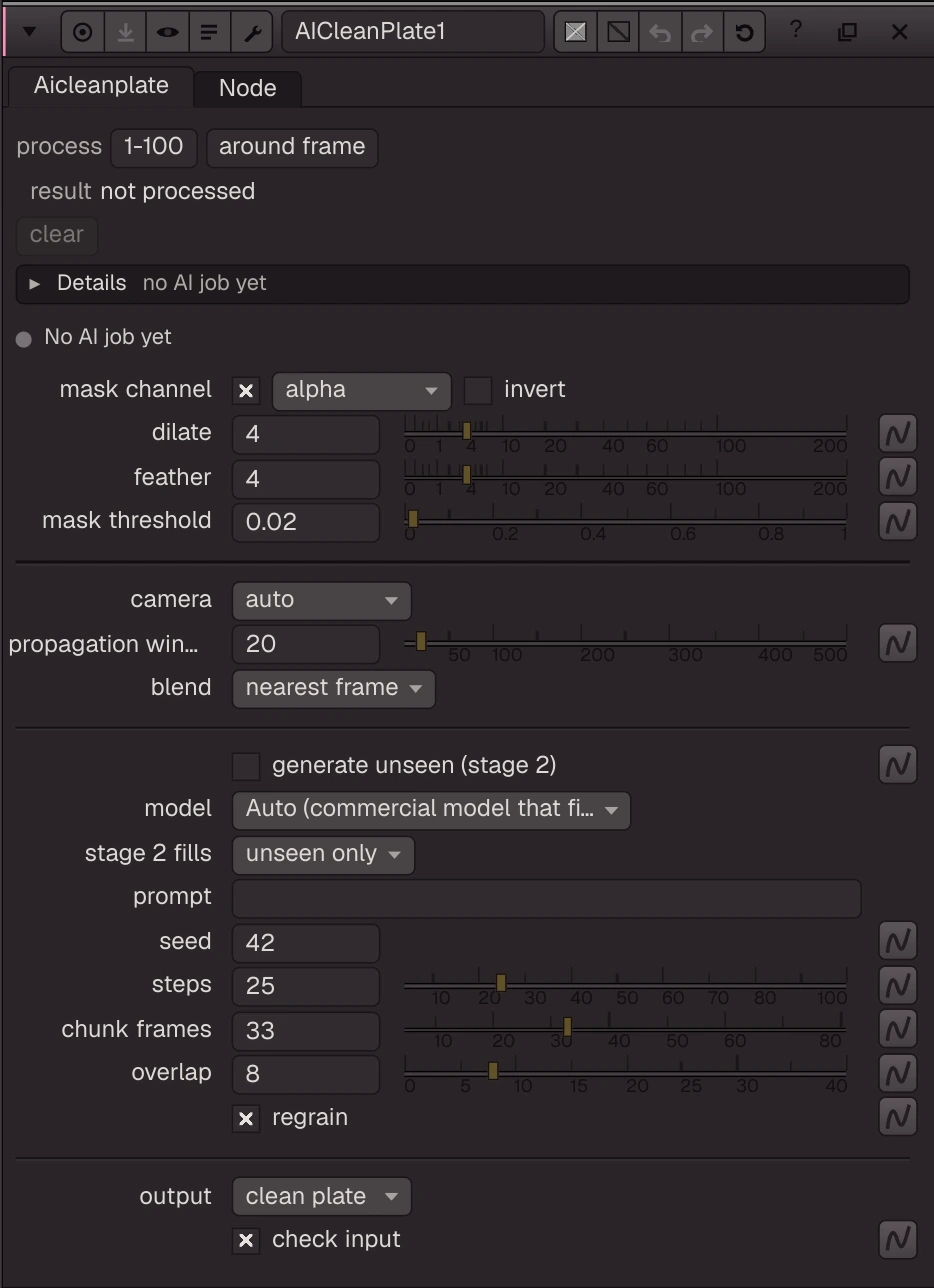

Panel tab Aicleanplate, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
mask_channel | mask channel | menu | alpha | alpha, red, luminance | ||
dilate | dilate | float | 4 | 0 to 200 | Pixels added around the mask (edges, motion blur, shadow) | |
feather | feather | float | 4 | 0 to 200 | ||
threshold | mask threshold | float | 0.02 | 0 to 1 | ||
mode | camera | menu | auto | auto, flow (moving camera), static (locked-off), surface (surface (markers)) | ||
window | propagation window | float | 20 | 1 to 500 (integer) | Frames searched each way for clean background | |
blend | blend | menu | nearest | nearest (nearest frame), average | ||
stage2 | generate unseen (stage 2) | bool | false | Wan 2.1 VACE fills pixels no frame ever shows | ||
model | model | menu | AUTO | AUTO (Auto (commercial model that fits)), wan2.1-vace-1.3b (Wan 2.1 VACE 1.3B), minimax-remover (MiniMax-Remover (research pack, non-commercial)) | ||
stage2_fill | stage 2 fills | menu | unseen | unseen (unseen only), all (whole hole) | ||
prompt | prompt | text | Optional: what the background is (empty = generic clean plate) | |||
seed | seed | float | 42 | 0 to 2147483647 (integer) | ||
steps | steps | float | 25 | 4 to 100 (integer) | ||
chunk | chunk frames | float | 33 | 5 to 81 (integer) | Frames the model sees at once (4n+1); chunks overlap and crossfade | |
overlap | overlap | float | 8 | 0 to 40 (integer) | ||
regrain | regrain | bool | true | Add grain matched to the plate to generated pixels | ||
output | output | menu | clean | clean (clean plate), stage1 (stage 1 only), holes | ||
check_input | check input | bool | true | Only use results made from exactly this plate + mask |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
generation | Generation | int | 0 | -2147483648 to 2147483647 | ||
processed_first | Processed First | int | 0 | -2147483648 to 2147483647 | ||
processed_last | Processed Last | int | -1 | -2147483648 to 2147483647 |
Nuke equivalent
No Nuke class. In a .nk file this node is written as an Oink node that Nuke will not recognise.
