MotionBlur3D
MotionBlur3D — blur from camera motion and depth.
| Node | MotionBlur3D |
|---|---|
| Type id | OC_N_motionblur3d |
| Menu | Filter › MotionBlur3D |
| Nuke class | MotionBlur3D |
| Code | opencomp_core/nodes/filter/motion_nodes.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | cam | image |
| output 0 | Image | image |
Knobs

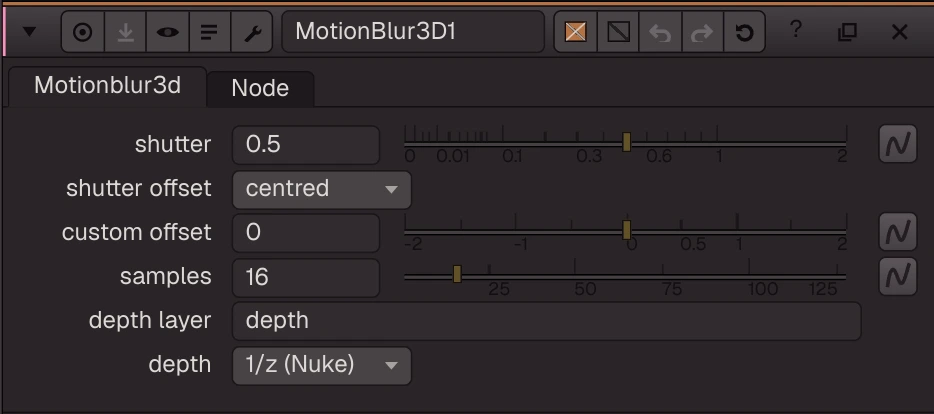

Panel tab Motionblur3d, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
shutter | shutter | float | 0.5 | 0 to 2 | shutter | |
shutteroffset | shutter offset | menu | centred | centred, start, end, custom | shutteroffset | |
shuttercustomoffset | custom offset | float | 0 | -2 to 2 | shuttercustomoffset | |
samples | samples | float | 16 | 1 to 128 (integer) | samples | |
depth | depth layer | text | depth | |||
depth_mode | depth | menu | one_over_z | one_over_z (1/z (Nuke)), distance (z) |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's MotionBlur3D.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
