Nodes
FrameRange
FrameRange: sets the clip's frame range with first_frame and last_frame (what the timeline shows with the range source on Input, and what Retime / Kronos take as their input range).
FrameRange: sets the clip's frame range with first_frame and last_frame (what the timeline shows with the range source on Input, and what Retime / Kronos take as their input range). Pixels pass through; reset takes the input's range.
| Node | FrameRange |
|---|---|
| Type id | OC_N_framerange |
| Menu | Time › FrameRange |
| Nuke class | FrameRange |
| Code | opencomp_core/nodes/utility/time_nodes.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |
Knobs

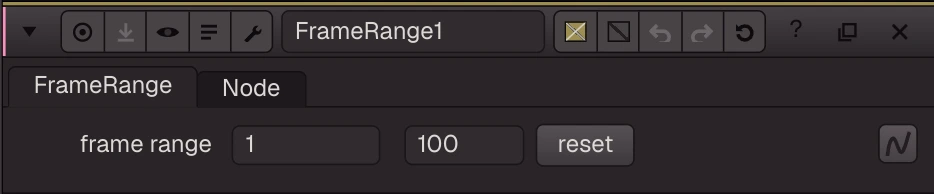

Panel tab FrameRange, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
first_frame | frame range | float | 1 | -100000 to 100000 (integer) | first_frame | |
last_frame | to | float | 100 | -100000 to 100000 (integer) | last_frame | |
reset | reset | button (panel only) |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
time | time | string | time | Nuke's hidden time knob (kept for .nk) |
Nuke equivalent
Imports from and exports to Nuke's FrameRange.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
