LD_3DE4_Anamorphic_Degree_6

Node	LD_3DE4_Anamorphic_Degree_6
Type id	`OC_N_ld3de_anamorphic6`
Menu	Transform › LD_3DE4_Anamorphic_Degree_6
Nuke class	`LD_3DE4_Anamorphic_Degree_6`
Code	`opencomp_core/nodes/transform/lens_3de.py`

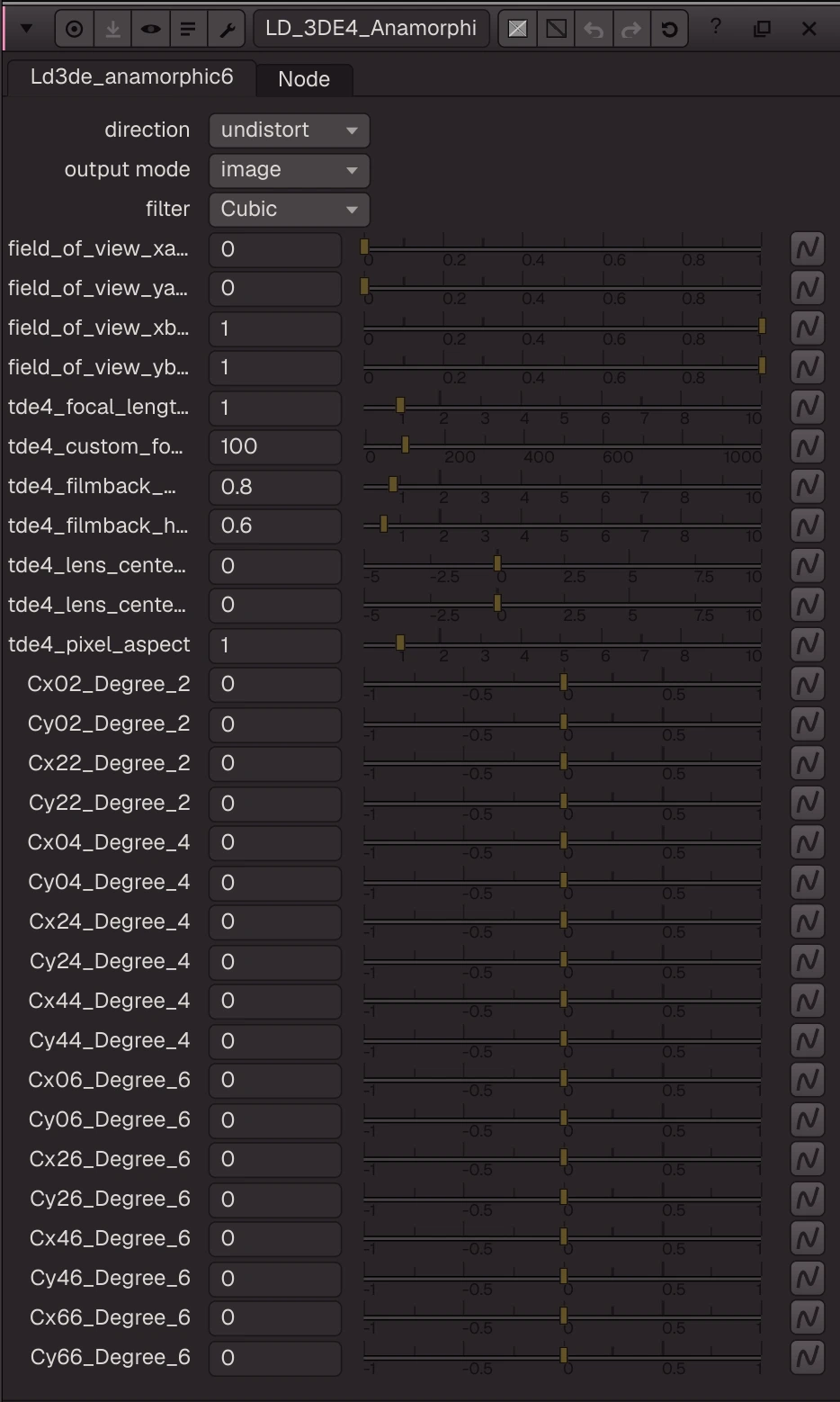

LD_3DE4_Anamorphic_Degree_6 properties

Inputs and outputs

Port	Name	Type
input 0	Image	image
output 0	Image	image

Knobs

Panel tab Ld3de_anamorphic6, in panel order.

Knob	Label	Type	Default	Range / values	Nuke knob
`direction`	direction	menu	`undistort`	distort, undistort	`direction`
`mode`	output mode	menu	`image`	image, STMap	`mode`
`filter`	filter	menu	`cubic`	cubic (Cubic), bilinear (Linear), impulse (Impulse)	`filter`
`field_of_view_xa_unit`	field_of_view_xa_unit	float	`0`	0 to 1	`field_of_view_xa_unit`
`field_of_view_ya_unit`	field_of_view_ya_unit	float	`0`	0 to 1	`field_of_view_ya_unit`
`field_of_view_xb_unit`	field_of_view_xb_unit	float	`1`	0 to 1	`field_of_view_xb_unit`
`field_of_view_yb_unit`	field_of_view_yb_unit	float	`1`	0 to 1	`field_of_view_yb_unit`
`tde4_focal_length_cm`	tde4_focal_length_cm	float	`1`	0.1 to 10	`tde4_focal_length_cm`
`tde4_custom_focus_distance_cm`	tde4_custom_focus_distance_cm	float	`100`	-5 to 1000	`tde4_custom_focus_distance_cm`
`tde4_filmback_width_cm`	tde4_filmback_width_cm	float	`0.8`	0.1 to 10	`tde4_filmback_width_cm`
`tde4_filmback_height_cm`	tde4_filmback_height_cm	float	`0.6`	0.1 to 10	`tde4_filmback_height_cm`
`tde4_lens_center_offset_x_cm`	tde4_lens_center_offset_x_cm	float	`0`	-5 to 10	`tde4_lens_center_offset_x_cm`
`tde4_lens_center_offset_y_cm`	tde4_lens_center_offset_y_cm	float	`0`	-5 to 10	`tde4_lens_center_offset_y_cm`
`tde4_pixel_aspect`	tde4_pixel_aspect	float	`1`	0.1 to 10	`tde4_pixel_aspect`
`Cx02_Degree_2`	Cx02_Degree_2	float	`0`	-1 to 1	`Cx02_Degree_2`
`Cy02_Degree_2`	Cy02_Degree_2	float	`0`	-1 to 1	`Cy02_Degree_2`
`Cx22_Degree_2`	Cx22_Degree_2	float	`0`	-1 to 1	`Cx22_Degree_2`
`Cy22_Degree_2`	Cy22_Degree_2	float	`0`	-1 to 1	`Cy22_Degree_2`
`Cx04_Degree_4`	Cx04_Degree_4	float	`0`	-1 to 1	`Cx04_Degree_4`
`Cy04_Degree_4`	Cy04_Degree_4	float	`0`	-1 to 1	`Cy04_Degree_4`
`Cx24_Degree_4`	Cx24_Degree_4	float	`0`	-1 to 1	`Cx24_Degree_4`
`Cy24_Degree_4`	Cy24_Degree_4	float	`0`	-1 to 1	`Cy24_Degree_4`
`Cx44_Degree_4`	Cx44_Degree_4	float	`0`	-1 to 1	`Cx44_Degree_4`
`Cy44_Degree_4`	Cy44_Degree_4	float	`0`	-1 to 1	`Cy44_Degree_4`
`Cx06_Degree_6`	Cx06_Degree_6	float	`0`	-1 to 1	`Cx06_Degree_6`
`Cy06_Degree_6`	Cy06_Degree_6	float	`0`	-1 to 1	`Cy06_Degree_6`
`Cx26_Degree_6`	Cx26_Degree_6	float	`0`	-1 to 1	`Cx26_Degree_6`
`Cy26_Degree_6`	Cy26_Degree_6	float	`0`	-1 to 1	`Cy26_Degree_6`
`Cx46_Degree_6`	Cx46_Degree_6	float	`0`	-1 to 1	`Cx46_Degree_6`
`Cy46_Degree_6`	Cy46_Degree_6	float	`0`	-1 to 1	`Cy46_Degree_6`
`Cx66_Degree_6`	Cx66_Degree_6	float	`0`	-1 to 1	`Cx66_Degree_6`
`Cy66_Degree_6`	Cy66_Degree_6	float	`0`	-1 to 1	`Cy66_Degree_6`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string

Nuke equivalent

Imports from and exports to Nuke's LD_3DE4_Anamorphic_Degree_6.

Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
