TimeWarp
TimeWarp: shows input frame `input frame` (usually an animated curve) at the current frame.
TimeWarp: shows input frame input frame (usually an animated curve) at the current frame. A new node starts with the current frame. Filter (box by default): none / nearest = the nearest frame, box = the frames under input frame +- input length / 2 averaged. Set to df/dt makes the input length follow the curve's slope.
| Node | TimeWarp |
|---|---|
| Type id | OC_N_timewarp |
| Menu | Time › TimeWarp |
| Nuke class | TimeWarp |
| Code | opencomp_core/nodes/utility/time_nodes.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |

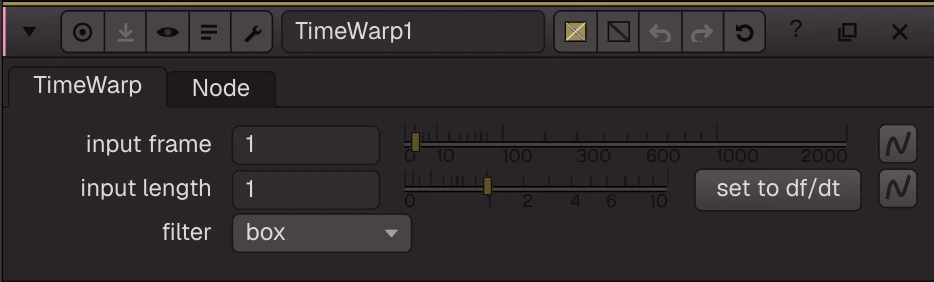

Knobs
Panel tab TimeWarp, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
lookup | input frame | float | 1 | 0 to 2000 | lookup | |
length | input length | float | 1 | 0 to 10 | length | Length of input time averaged into each output frame (box filter) |
set_dfdt | set to df/dt | button (panel only) | ||||
filter | filter | menu | box | none, nearest, box | filter |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
use_lookup | use lookup | boolean | true | Off: lookup = current frame (knob absent) | ||
length_dfdt | set to df/dt | boolean | false | input length = the slope of the input frame curve (Nuke's set to df/dt) | ||
time | time | string | time | Nuke's hidden time knob (kept for .nk) |
Nuke equivalent
Imports from and exports to Nuke's TimeWarp.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
