PlanarTracker
PlanarTracker: set corner1-4 around a flat surface at the reference frame, Track, then Export a CornerPin2D (relative = from the reference frame, absolute = from the full format).
| Node | PlanarTracker |
|---|---|
| Type id | OC_N_planartracker |
| Menu | Transform › PlanarTracker |
| Nuke class | none: saved in .nk files as an Oink node |
| Code | opencomp_core/nodes/tracking/planar_tracker.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |

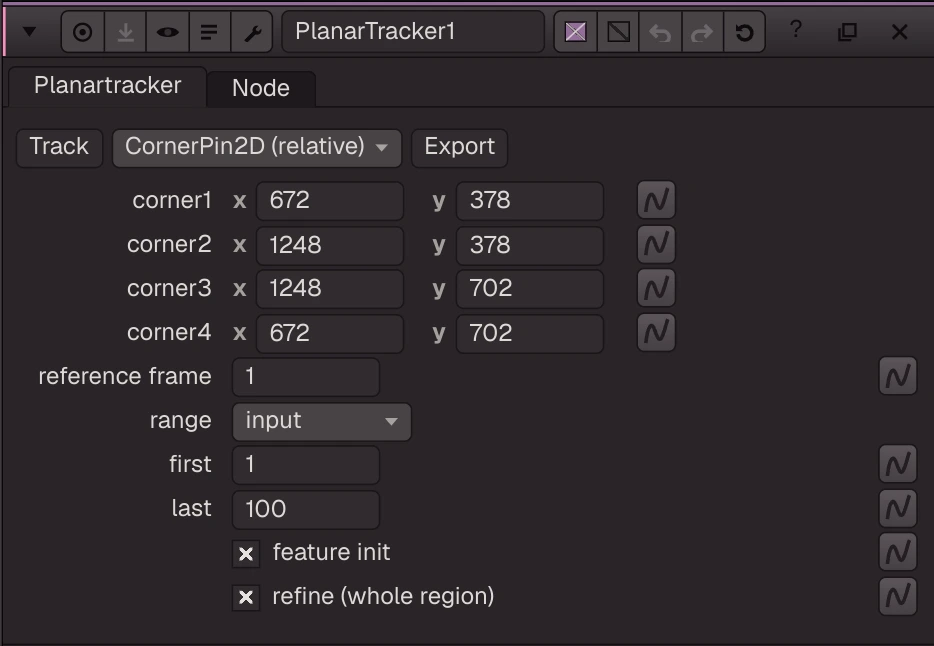

Knobs
Panel tab Planartracker, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
corner1 | corner1 | vector ×2 | 672, 378 | -2000 to 6000 | ||
corner2 | corner2 | vector ×2 | 1248, 378 | -2000 to 6000 | ||
corner3 | corner3 | vector ×2 | 1248, 702 | -2000 to 6000 | ||
corner4 | corner4 | vector ×2 | 672, 702 | -2000 to 6000 | ||
reference_frame | reference frame | float | 1 | -100000 to 100000 (integer) | ||
track_range | range | menu | input | input, custom | ||
range_first | first | float | 1 | -100000 to 100000 (integer) | ||
range_last | last | float | 100 | -100000 to 100000 (integer) | ||
use_features | feature init | bool | true | Initial guess from libmv feature tracks | ||
refine | refine (whole region) | bool | true | Direct (whole-region) homography refinement |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
No Nuke class. In a .nk file this node is written as an Oink node that Nuke will not recognise.
