AIMaterials
AIMaterials: Analyze runs Cosmos DiffusionRenderer 7B (NVIDIA Open Model License, optional: accept the licence first, ~29 GB download) over the frames in overlapping 57-frame windows and outputs layer
AIMaterials: Analyze runs Cosmos DiffusionRenderer 7B (NVIDIA Open Model License, optional: accept the licence first, ~29 GB download) over the frames in overlapping 57-frame windows and outputs layers albedo (linear base colour), N (camera-space normals like AINormals), roughness, metallic and depth (relative). The model runs at 1280x704; the result is upsampled to the plate guided by the plate (spatial / range sigma). A frame takes about 18 s on the test GPU. Tick which layers to make (out_*); keep loaded keeps the model ready for the next Analyze. Feed it to Relight (materials / generative).
| Node | AIMaterials |
|---|---|
| Type id | OC_N_aimaterials |
| Menu | AI › AIMaterials |
| Nuke class | none: saved in .nk files as an Oink node |
| Code | opencomp_core/nodes/ai/aimaterials.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | cam | scene |
| output 0 | Image | image |

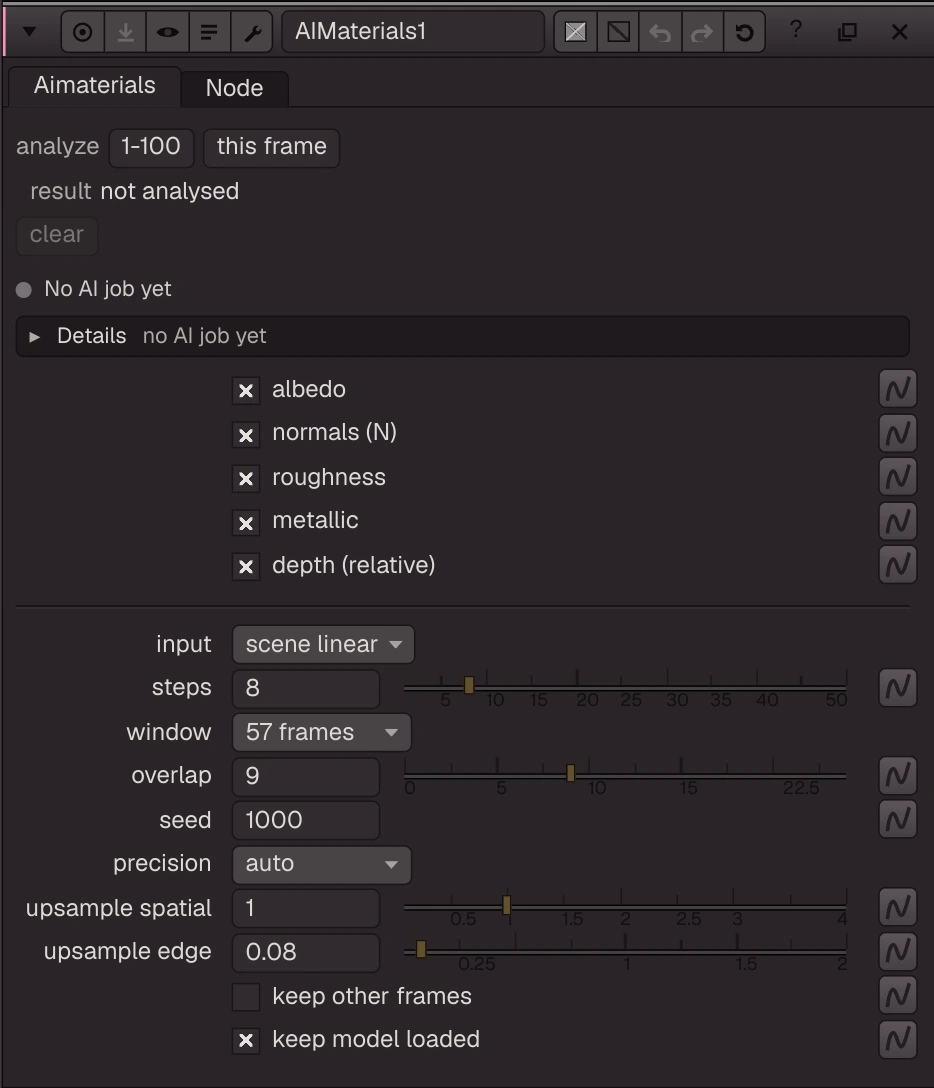

Knobs
Panel tab Aimaterials, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
out_albedo | albedo | bool | true | |||
out_normals | normals (N) | bool | true | |||
out_roughness | roughness | bool | true | |||
out_metallic | metallic | bool | true | |||
out_depth | depth (relative) | bool | true | |||
encode | input | menu | srgb | srgb (scene linear), gamma (linear (gamma 2.2)), none (display) | ||
steps | steps | float | 15 | 1 to 50 (integer) | Diffusion steps per pass (DPM-Solver++ 2M; 8 is closer to a 40-step solution than the reference's 15 Euler steps) | |
chunk | window | menu | 57 | 57 (57 frames), 25 (25 frames), 1 (per frame) | ||
overlap | overlap | float | 9 | 0 to 24 (integer) | Frames shared by consecutive windows (matched + cross-faded) | |
seed | seed | float | 1000 | 0 to 100000 (integer) | ||
precision | precision | menu | auto | auto, bf16 (bf16 (~19 GB)), fp8 (fp8 (~12 GB)) | ||
spatial_sigma | upsample spatial | float | 1 | 0.1 to 4 | ||
range_sigma | upsample edge | float | 0.08 | 0.005 to 2 | ||
keep_other_frames | keep other frames | bool | false | |||
keep_loaded | keep model loaded | bool | true | Keep the model on the GPU after a run so the next one starts warm; the AI worker still unloads it after 5 idle minutes or when another GPU job needs the card |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
results_data | Results | string | {} | |||
analysed_first | Analysed First | int | 0 | -2147483648 to 2147483647 | ||
analysed_last | Analysed Last | int | -1 | -2147483648 to 2147483647 | ||
seconds_per_frame | Seconds / Frame | float | 0 | -3.4028234663852886e+38 to 3.4028234663852886e+38 | ||
peak_vram | Peak VRAM (GB) | float | 0 | -3.4028234663852886e+38 to 3.4028234663852886e+38 |
Nuke equivalent
No Nuke class. In a .nk file this node is written as an Oink node that Nuke will not recognise.
