LensDistortion
LensDistortion (NukeX): undistort / redistort with radial k1, k2 (same model as the CameraTracker solve).
LensDistortion (NukeX): undistort / redistort with radial k1, k2 (same model as the CameraTracker solve). Output STMap for the STMap node.
| Node | LensDistortion |
|---|---|
| Type id | OC_N_lensdistortion |
| Menu | Transform › LensDistortion |
| Nuke class | LensDistortion2 (also imports LensDistortion) |
| Code | opencomp_core/nodes/transform/lens_distortion.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | mask | image |
| output 0 | Image | image |

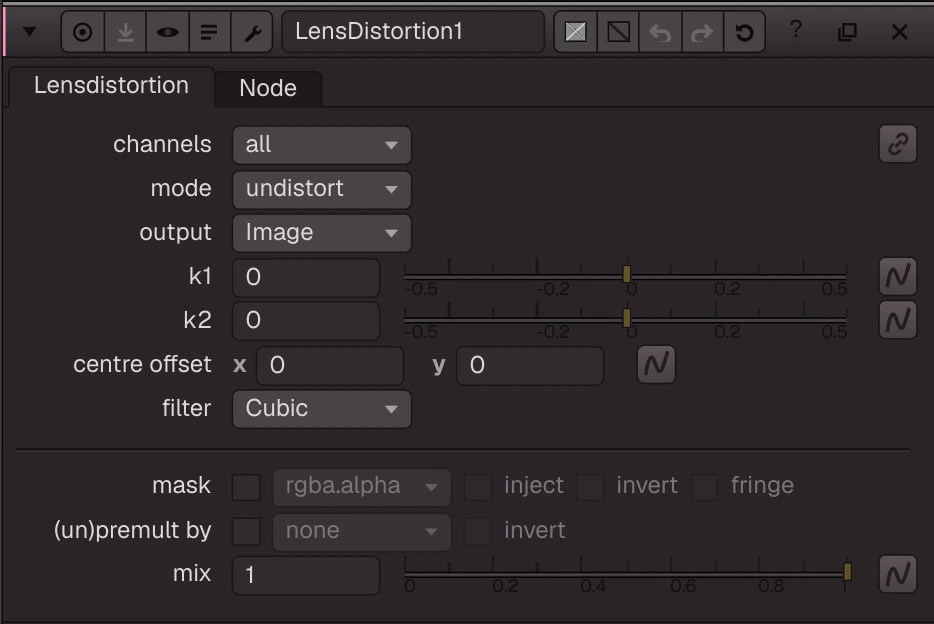

Knobs
Panel tab Lensdistortion, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
channels | channels | menu | all | rgba, rgb, alpha, all, none | Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch> | |
mode | mode | menu | undistort | undistort, redistort | output | |
output | output | menu | image | image (Image), stmap (STMap) | outputType | |
k1 | k1 | float | 0 | -0.5 to 0.5 | k1 | |
k2 | k2 | float | 0 | -0.5 to 0.5 | k2 | |
center_offset | centre offset | vector ×2 | 0, 0 | -500 to 500 | center_offset | |
filter | filter | menu | cubic | cubic (Cubic), bilinear (Bilinear) | filter | |
mask_channel | mask | menu | none | none, rgba.alpha, rgba.red, rgba.green, rgba.blue | Mask channel, e.g. rgba.alpha (none = no mask) | |
inject | inject | bool | false | Copy the mask into mask.a for nodes downstream | ||
invert_mask | invert | bool | false | invert_mask | ||
fringe | fringe | bool | false | Only apply the effect at the edges of the mask | ||
unpremult | (un)premult by | menu | none | none, rgba.alpha | ||
invert_unpremult | invert | bool | false | (Un)premultiply by 1 - alpha | ||
mix | mix | float | 1 | 0 to 1 | mix |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's LensDistortion2 (LensDistortion also import to it). The standard Nuke mask knobs (channels, mask, invert, (un)premult, mix) are mapped too.
Knobs with a different name here:
| Nuke knob | Knob here |
|---|---|
distortion1 | k1 |
distortion2 | k2 |
output | mode |
outputType | output |
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
Examples
Open these from Help › Examples…, or from the ? menu in this node's Properties panel.
- LensDistortion: undistort and STMap (
examples/transform/lens_distortion.oink): LensDistortion with a barrel k1 undistorts the Golden Gate photo. A second LensDistortion writes the same warp as an STMap (uv in red/green), and the STMap node applies it: that is how distortion is handed between packages.
