Nodes
Remove
Remove — remove or keep channels / layers.
| Node | Remove |
|---|---|
| Type id | OC_N_remove |
| Menu | Channel › Remove |
| Nuke class | Remove |
| Code | opencomp_core/nodes/merge/channel_nodes.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |

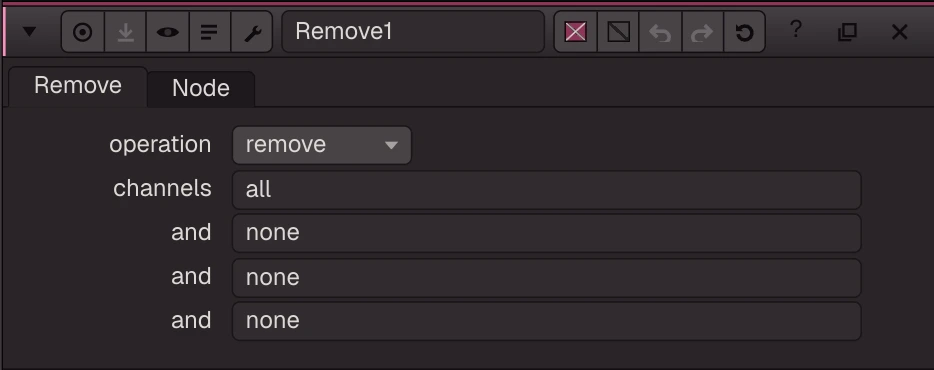

Knobs
Panel tab Remove, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
operation | operation | menu | remove | remove, keep | operation | |
channels | channels | text | all | channels | ||
channels2 | and | text | none | channels2 | ||
channels3 | and | text | none | channels3 | ||
channels4 | and | text | none | channels4 |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's Remove.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
