Retime

Retime: Nuke's Retime. Maps the input range onto an output range at a speed (both output ends locked: the speed that fits), with reverse, before / after (continue, loop, bounce, hold, black), a box filter whose width is speed x shutter, and a warp curve on the TimeWarp tab. For motion-vector retiming use Kronos. Before and after start on hold.

Node	Retime
Type id	`OC_N_nkretime`
Menu	Time › Retime
Nuke class	`Retime`
Code	`opencomp_core/nodes/utility/time_nodes.py`

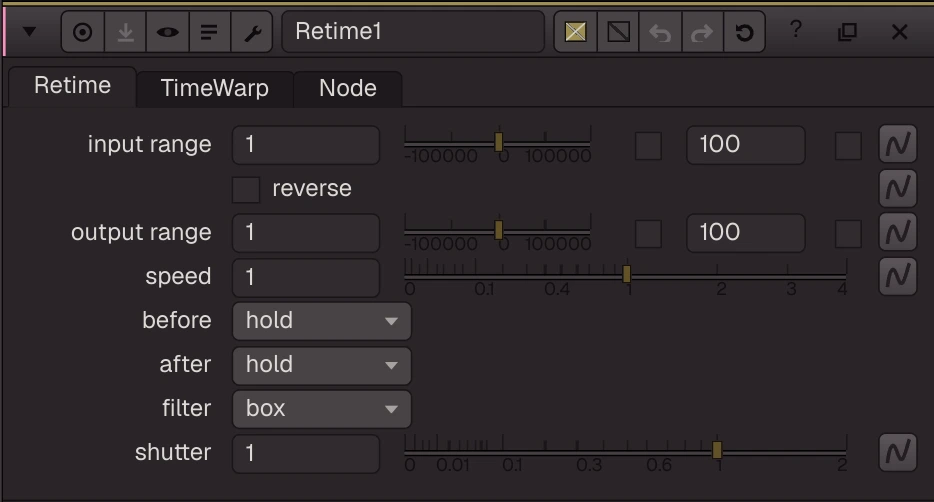

Retime properties

Inputs and outputs

Port	Name	Type
input 0	Image	image
output 0	Image	image

Knobs

Panel tab Retime, in panel order.

Knob	Label	Type	Default	Range / values	Nuke knob	Description
`input_first`	input range	float	`1`	-100000 to 100000	`input.first`
`input_first_lock`		bool	`false`		`input.first_lock`	Off: the input clip's first frame
`input_last`	to	float	`100`	-100000 to 100000	`input.last`
`input_last_lock`		bool	`false`		`input.last_lock`	Off: the input clip's last frame
`reverse`	reverse	bool	`false`		`reverse`
`output_first`	output range	float	`1`	-100000 to 100000	`output.first`
`output_first_lock`		bool	`false`		`output.first_lock`
`output_last`	to	float	`100`	-100000 to 100000	`output.last`
`output_last_lock`		bool	`false`		`output.last_lock`
`speed`	speed	float	`1`	0 to 4	`speed`
`before`	before	menu	`hold`	continue, loop, bounce, hold, black	`before`
`after`	after	menu	`hold`	continue, loop, bounce, hold, black	`after`
`filter`	filter	menu	`box`	none, nearest, box	`filter`
`shutter`	shutter	float	`1`	0 to 2	`shutter`
`warp`	warp	curves	`{warp {curve 0 1}}`		`warp`	TimeWarp tab curve: output position (0-1) -> input position (0-1)

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	Nuke knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
`time`	time	string			`time`	Nuke's hidden time knob (kept for .nk)

Nuke equivalent

Imports from and exports to Nuke's Retime.

Knobs with a different name here:

Nuke knob	Knob here
`input.first`	`input_first`
`input.first_lock`	`input_first_lock`
`input.last`	`input_last`
`input.last_lock`	`input_last_lock`
`output.first`	`output_first`
`output.first_lock`	`output_first_lock`
`output.last`	`output_last`
`output.last_lock`	`output_last_lock`

Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
