Nodes
Clamp
Clamp channel values to a range.
| Node | Clamp |
|---|---|
| Type id | OC_N_clamp |
| Menu | Color › Clamp |
| Nuke class | Clamp |
| Code | opencomp_core/nodes/color/clamp.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | mask | image |
| output 0 | Image | image |
Knobs

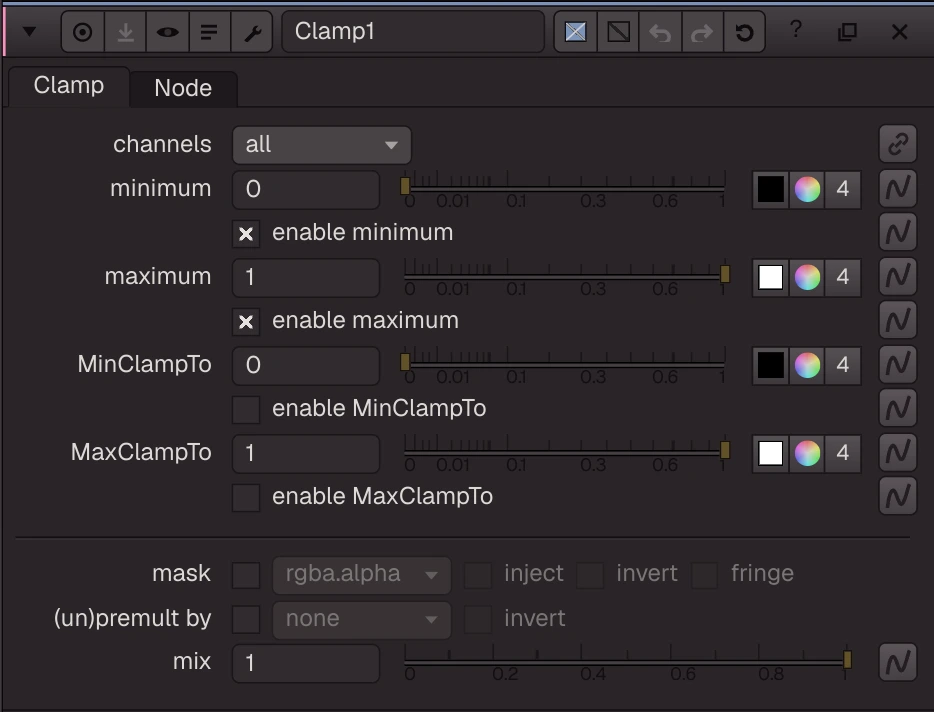

Panel tab Clamp, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
channels | channels | menu | all | rgba, rgb, alpha, all, none | Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch> | |
minimum | minimum | colour ×4 | 0, 0, 0, 0 | 0 to 1 | minimum | |
minimum_enable | enable minimum | bool | true | minimum_enable | ||
maximum | maximum | colour ×4 | 1, 1, 1, 1 | 0 to 1 | maximum | |
maximum_enable | enable maximum | bool | true | maximum_enable | ||
MinClampTo | MinClampTo | colour ×4 | 0, 0, 0, 0 | 0 to 1 | MinClampTo | |
MinClampTo_enable | enable MinClampTo | bool | false | MinClampTo_enable | ||
MaxClampTo | MaxClampTo | colour ×4 | 1, 1, 1, 1 | 0 to 1 | MaxClampTo | |
MaxClampTo_enable | enable MaxClampTo | bool | false | MaxClampTo_enable | ||
mask_channel | mask | menu | none | none, rgba.alpha, rgba.red, rgba.green, rgba.blue | Mask channel, e.g. rgba.alpha (none = no mask) | |
inject | inject | bool | false | Copy the mask into mask.a for nodes downstream | ||
invert_mask | invert | bool | false | invert_mask | ||
fringe | fringe | bool | false | Only apply the effect at the edges of the mask | ||
unpremult | (un)premult by | menu | none | none, rgba.alpha | ||
invert_unpremult | invert | bool | false | (Un)premultiply by 1 - alpha | ||
mix | mix | float | 1 | 0 to 1 | mix |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's Clamp. The standard Nuke mask knobs (channels, mask, invert, (un)premult, mix) are mapped too.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
Examples
Open these from Help › Examples…, or from the ? menu in this node's Properties panel.
- Bright values, NaN and inf (
