FrameBlend
FrameBlend — average several frames.
| Node | FrameBlend |
|---|---|
| Type id | OC_N_frameblend |
| Menu | Time › FrameBlend |
| Nuke class | FrameBlend |
| Code | opencomp_core/nodes/utility/time_nodes.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |
Knobs

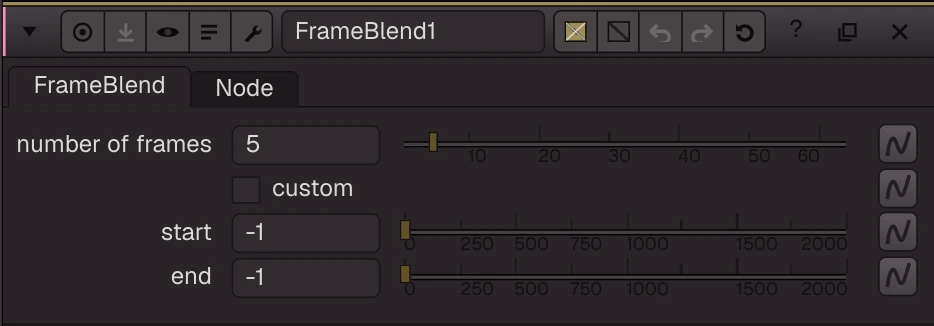

Panel tab FrameBlend, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
numframes | number of frames | float | 5 | 1 to 64 (integer) | numframes | |
userange | custom | bool | false | userange | ||
startframe | start | float | -1 | -1 to 2000 | startframe | |
endframe | end | float | -1 | -1 to 2000 | endframe |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's FrameBlend.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
