OCIOColorSpace
OCIOColorSpace — convert between two OCIO colour spaces.
| Node | OCIOColorSpace |
|---|---|
| Type id | OC_N_ociocolorspace |
| Menu | Color › OCIOColorSpace |
| Nuke class | OCIOColorSpace |
| Code | opencomp_core/nodes/color/colorspace_nodes.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | mask | image |
| output 0 | Image | image |

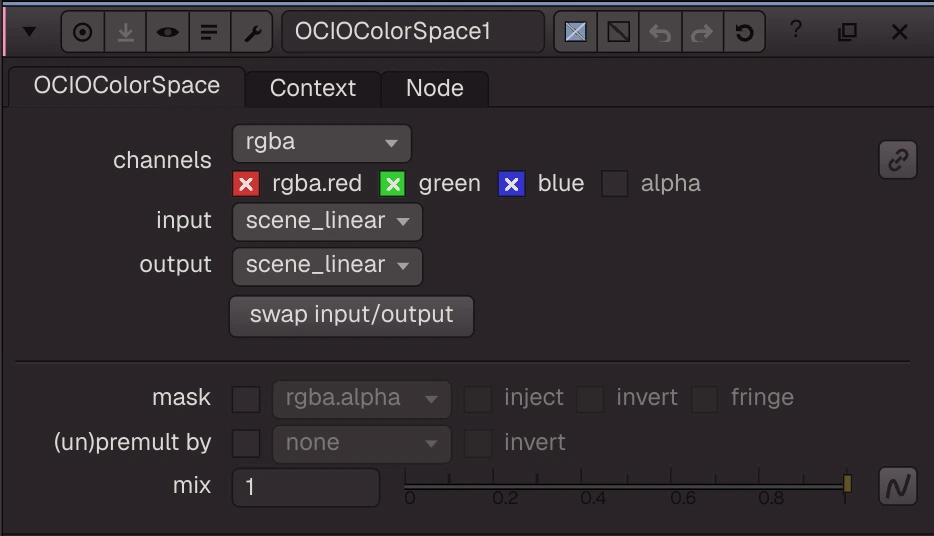

Knobs
Panel tab OCIOColorSpace, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
channels | channels | menu | rgb | rgba, rgb, alpha, all, none | Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch> | |
in_colorspace | input | menu | scene_linear | scene_linear | in_colorspace | |
out_colorspace | output | menu | scene_linear | scene_linear | out_colorspace | |
swap | swap input/output | button (panel only) | ||||
mask_channel | mask | menu | none | none, rgba.alpha, rgba.red, rgba.green, rgba.blue | Mask channel, e.g. rgba.alpha (none = no mask) | |
inject | inject | bool | false | Copy the mask into mask.a for nodes downstream | ||
invert_mask | invert | bool | false | invert_mask | ||
fringe | fringe | bool | false | Only apply the effect at the edges of the mask | ||
unpremult | (un)premult by | menu | none | none, rgba.alpha | ||
invert_unpremult | invert | bool | false | (Un)premultiply by 1 - alpha | ||
mix | mix | float | 1 | 0 to 1 | mix | |
key1 | key1 | text | key1 | |||
value1 | value1 | text | value1 | |||
key2 | key2 | text | key2 | |||
value2 | value2 | text | value2 | |||
key3 | key3 | text | key3 | |||
value3 | value3 | text | value3 | |||
key4 | key4 | text | key4 | |||
value4 | value4 | text | value4 |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
in_colorspace_expr | in (expression) | string | ||||
out_colorspace_expr | out (expression) | string |
Nuke equivalent
Imports from and exports to Nuke's OCIOColorSpace. The standard Nuke mask knobs (channels, mask, invert, (un)premult, mix) are mapped too.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
Examples
Open these from Help › Examples…, or from the ? menu in this node's Properties panel.
- OCIOColorSpace: ACES2065-1 to scene linear (
examples/color/ocio_aces_to_linear.oink): Carrots.exr is stored with ACES2065-1 (AP0) primaries. The Read is set to raw (no conversion) and the OCIOColorSpace converts AP0 to the working space (Linear Rec.709), which is what the Read's input transform does for you when you set it.
