EEVEERender

The same scene rendered with Blender EEVEE (5.2 engine id 'BLENDER_EEVEE'; the 'BLENDER_EEVEE_NEXT' id of 4.2-4.4 is gone).

The same scene rendered with Blender EEVEE (5.2 engine id 'BLENDER_EEVEE'; the 'BLENDER_EEVEE_NEXT' id of 4.2-4.4 is gone). Headless: works in --background after gpu.init(). Bloom is not an EEVEE option any more in 5.x (use Glow downstream).

Node	EEVEERender
Type id	`OC_N_eeveerender`
Menu	3D › EEVEERender
Nuke class	none: saved in .nk files as an Oink node
Code	`opencomp_core/nodes/three_d/render_nodes.py`

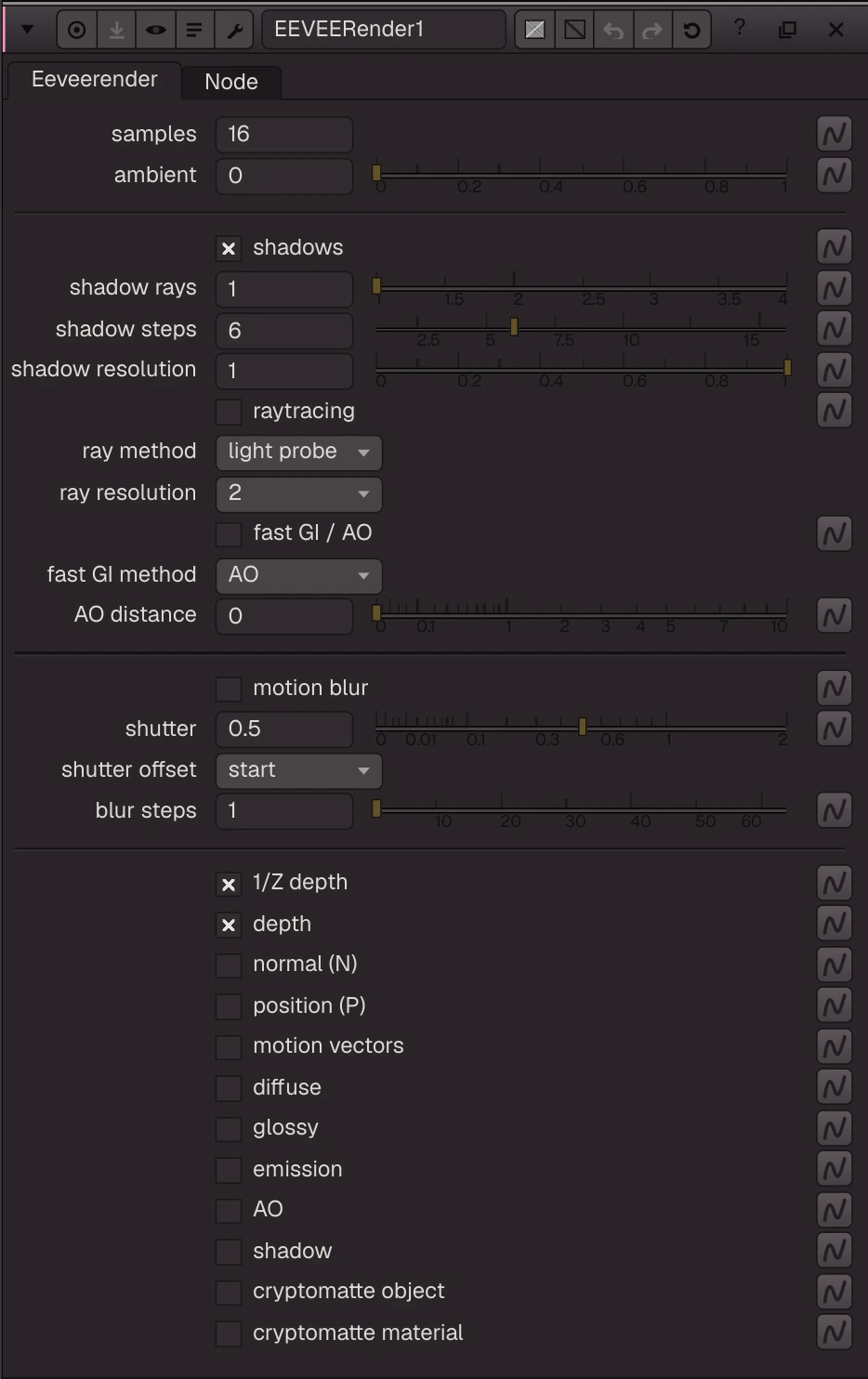

EEVEERender properties

Inputs and outputs

Port	Name	Type
input 0	bg	image
input 1	obj/scn	scene
input 2	cam	scene
output 0	Image	image

Knobs

Panel tab Eeveerender, in panel order.

Knob	Label	Type	Default	Range / values
`samples`	samples	float	`16`	1 to 4096 (integer)
`ambient`	ambient	float	`0`	0 to 1
`use_shadows`	shadows	bool	`true`
`shadow_ray_count`	shadow rays	float	`1`	1 to 4 (integer)
`shadow_step_count`	shadow steps	float	`6`	1 to 16 (integer)
`shadow_resolution_scale`	shadow resolution	float	`1`	0 to 1
`use_raytracing`	raytracing	bool	`false`
`ray_tracing_method`	ray method	menu	`PROBE`	PROBE (light probe), SCREEN (screen trace)
`ray_resolution_scale`	ray resolution	menu	`2`	1, 2, 4, 8, 16
`fast_gi`	fast GI / AO	bool	`false`
`fast_gi_method`	fast GI method	menu	`AMBIENT_OCCLUSION_ONLY`	AMBIENT_OCCLUSION_ONLY (AO), GLOBAL_ILLUMINATION (GI)
`fast_gi_distance`	AO distance	float	`0`	0 to 10
`motion_blur`	motion blur	bool	`false`
`shutter`	shutter	float	`0.5`	0 to 2
`shutteroffset`	shutter offset	menu	`start`	start, centred, end
`motion_blur_steps`	blur steps	float	`1`	1 to 64 (integer)
`one_over_z`	1/Z depth	bool	`true`
`output_depth`	depth	bool	`true`
`output_normal`	normal (N)	bool	`false`
`output_position`	position (P)	bool	`false`
`output_motion`	motion vectors	bool	`false`
`output_diffuse`	diffuse	bool	`false`
`output_glossy`	glossy	bool	`false`
`output_emission`	emission	bool	`false`
`output_ao`	AO	bool	`false`
`output_shadow`	shadow	bool	`false`
`output_crypto_object`	cryptomatte object	bool	`false`
`output_crypto_material`	cryptomatte material	bool	`false`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string

Nuke equivalent

No Nuke class. In a .nk file this node is written as an Oink node that Nuke will not recognise.
