ZDefocus

ZDefocus: depth of field from a depth channel — the image is cut into depth layers, each blurred by its distance from the focus plane and laid back over the others from the back to the front.

ZDefocus: depth of field from a depth channel — the image is cut into depth layers, each blurred by its distance from the focus plane and laid back over the others from the back to the front. Drag the focal point in the Viewer to focus on what is under it. Disc, bladed (iris) or image bokeh; focal plane / layer / filter shape setup views. fill foreground keeps the background continuous behind a blurred front layer, so its edge does not leave a step. Layer spacing is automatic unless you turn it off.

Node	ZDefocus
Type id	`OC_N_zdefocus`
Menu	Filter › ZDefocus
Nuke class	`ZDefocus2` (also imports `ZDefocus`)
Code	`opencomp_core/nodes/filter/zdefocus.py`

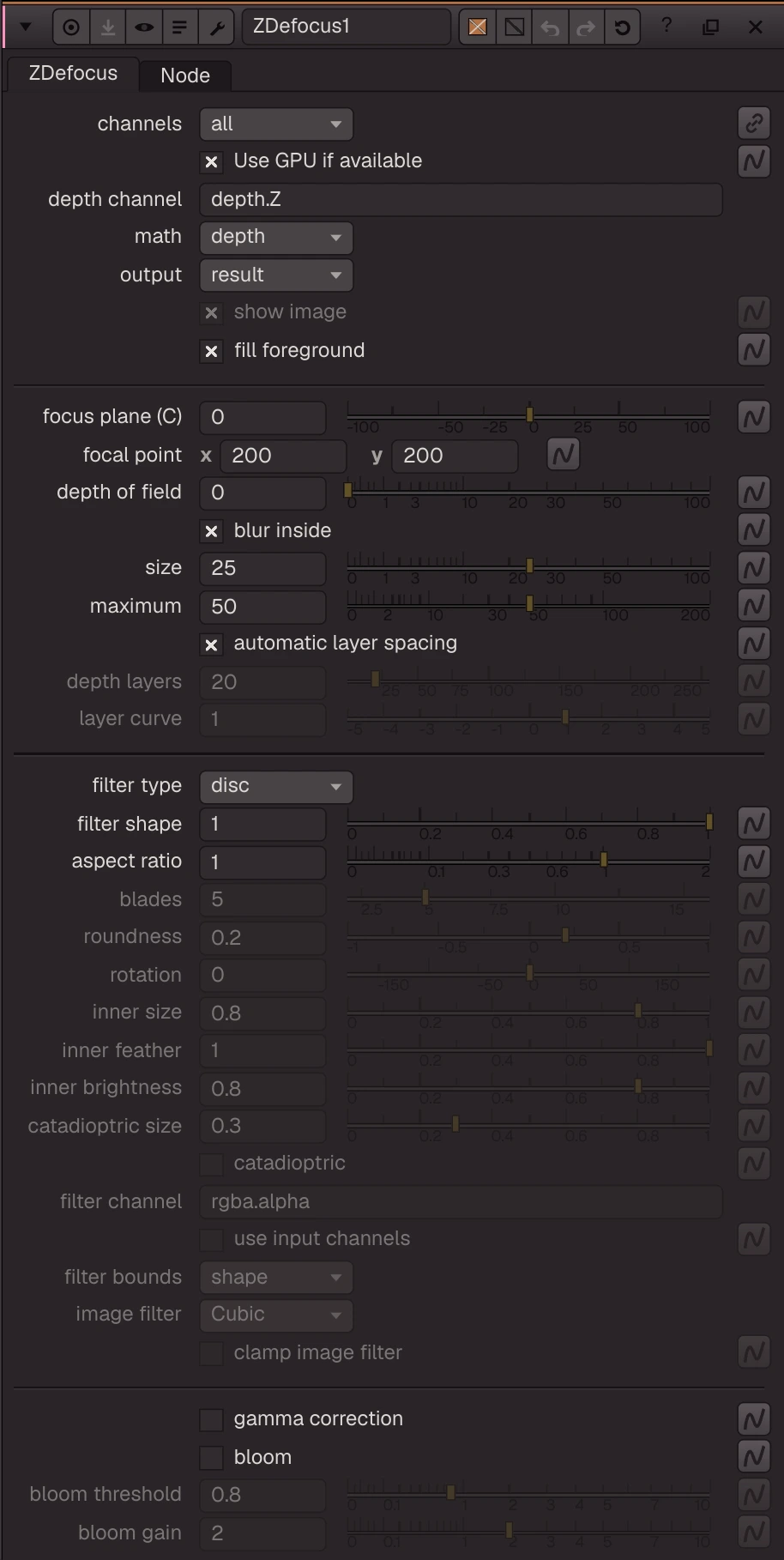

ZDefocus properties

Inputs and outputs

Port	Name	Type
input 0	Image	image
input 1	filter	image
input 2	mask	image
output 0	Image	image

Knobs

Panel tab ZDefocus, in panel order.

Knob	Label	Type	Default	Range / values	Nuke knob	Description
`channels`	channels	menu	`all`	rgba, rgb, alpha, all, none		Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch>
`useGPUIfAvailable`	Use GPU if available	bool	`true`		`useGPUIfAvailable`
`z_channel`	depth channel	text	`depth.Z`		`z_channel`
`math`	math	menu	`depth`	direct, depth, far0 (far = 0), far1 (far = 1), ndirect (-direct), ndepth (-depth), nfar0 (far = -0), nfar1 (far = -1)	`math`
`output`	output	menu	`result`	result, focal_plane_setup (focal plane setup), layer_setup (layer setup), filter_shape_setup (filter shape setup)	`output`
`show_image`	show image	bool	`true`		`show_image`
`fill_foreground`	fill foreground	bool	`true`		`fill_foreground`
`center`	focus plane (C)	float	`0`	-100 to 100	`center`
`focal_point`	focal point	vector ×2	`200, 200`	-10000 to 10000	`focal_point`
`dof`	depth of field	float	`0`	0 to 100	`dof`
`blur_dof`	blur inside	bool	`true`		`blur_dof`
`size`	size	float	`25`	0 to 100	`size`
`max_size`	maximum	float	`50`	0 to 200	`max_size`
`autoLayerSpacing`	automatic layer spacing	bool	`true`		`autoLayerSpacing`
`nLayers`	depth layers	float	`20`	1 to 256 (integer)	`nLayers`
`layerCurve`	layer curve	float	`1`	-5 to 5	`layerCurve`
`filter_type`	filter type	menu	`disc`	disc, bladed, image	`filter_type`
`shape`	filter shape	float	`1`	0 to 1	`shape`
`aspect`	aspect ratio	float	`1`	0 to 2	`aspect`
`blades`	blades	float	`5`	2 to 16 (integer)	`blades`
`roundness`	roundness	float	`0.2`	-1 to 1	`roundness`
`rotation`	rotation	float	`0`	-180 to 180	`rotation`
`inner_size`	inner size	float	`0.8`	0 to 1	`inner_size`
`inner_feather`	inner feather	float	`1`	0 to 1	`inner_feather`
`inner_brightness`	inner brightness	float	`0.8`	0 to 1	`inner_brightness`
`catadioptric_size`	catadioptric size	float	`0.3`	0 to 1	`catadioptric_size`
`catadioptric`	catadioptric	bool	`false`		`catadioptric`
`filter_channel`	filter channel	text	`rgba.alpha`		`filter_channel`
`use_input_channels`	use input channels	bool	`false`		`use_input_channels`
`filter_bounds`	filter bounds	menu	`shape`	shape, format	`filter_bounds`
`image_filter`	image filter	menu	`CUBIC`	IMPULSE (Impulse), CUBIC (Cubic), KEYS (Keys), SIMON (Simon), RIFMAN (Rifman), MITCHELL (Mitchell), PARZEN (Parzen), NOTCH (Notch), LANCZOS4 (Lanczos4), LANCZOS6 (Lanczos6), SINC4 (Sinc4)	`image_filter`
`clamp_image_filter`	clamp image filter	bool	`false`		`clamp_image_filter`
`bloom_gamma`	gamma correction	bool	`false`		`bloom_gamma`
`bloom`	bloom	bool	`false`		`bloom`
`bloom_threshold`	bloom threshold	float	`0.8`	0 to 10	`bloom_threshold`
`bloom_gain`	bloom gain	float	`2`	0 to 10	`bloom_gain`
`mask_channel`	mask	menu	`none`	none, rgba.alpha, rgba.red, rgba.green, rgba.blue		Mask channel, e.g. rgba.alpha (none = no mask)
`inject`	inject	bool	`false`			Copy the mask into mask.a for nodes downstream
`invert_mask`	invert	bool	`false`		`invert_mask`
`fringe`	fringe	bool	`false`			Only apply the effect at the edges of the mask
`mix`	mix	float	`1`	0 to 1	`mix`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	Nuke knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
`unpremult`	(Un)premult by	enum	`none`	none, rgba.alpha
`invert_unpremult`	invert	boolean	`false`			(Un)premultiply by 1 - alpha
`legacy_resize_mode`	legacy resize mode	boolean	`false`		`legacy_resize_mode`

Nuke equivalent

Imports from and exports to Nuke's ZDefocus2 (ZDefocus also import to it). The standard Nuke mask knobs (channels, mask, invert, (un)premult, mix) are mapped too.

Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
