DepthToPoints
DepthToPoints: turns the depth layer into 3D through the camera (cam input or focal knobs): a displaced, textured card mesh (ScanlineRender can re-render it from new views) or a coloured point cloud.
| Node | DepthToPoints |
|---|---|
| Type id | OC_N_depthtopoints |
| Menu | 3D › DepthToPoints |
| Nuke class | none: saved in .nk files as an Oink node |
| Code | opencomp_core/nodes/three_d/depth_points.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | cam | scene |
| output 0 | scene | scene |
Knobs

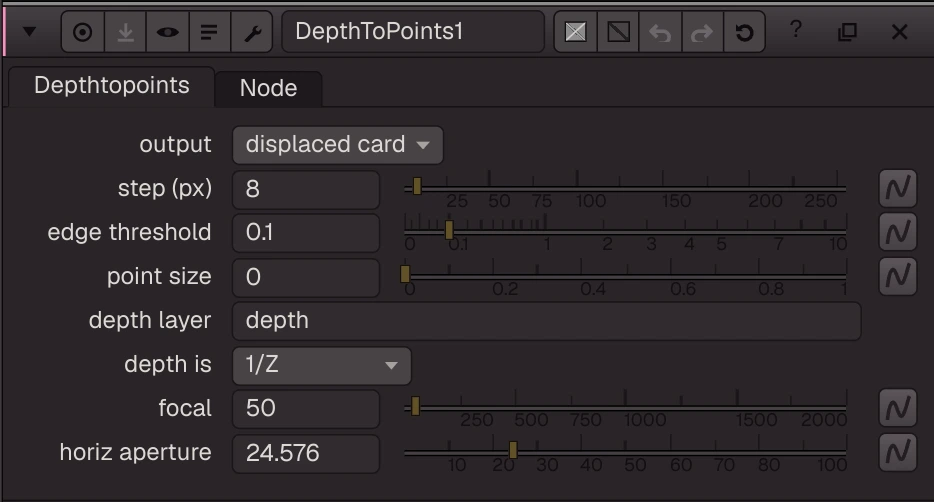

Panel tab Depthtopoints, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
mode | output | menu | mesh | mesh (displaced card), points (point cloud) | ||
step | step (px) | float | 8 | 1 to 256 (integer) | Sample every N pixels | |
edge_threshold | edge threshold | float | 0.1 | 0 to 10 | Drop mesh triangles whose depths differ by more than this fraction | |
point_size | point size | float | 0 | 0 to 1 | Octahedron radius for renderers (0 = 1/3 of the sample spacing) | |
depth_layer | depth layer | text | depth | |||
depth_convention | depth is | menu | inv | inv (1/Z), z (Z) | ||
focal | focal | float | 50 | 1 to 2000 | ||
haperture | horiz aperture | float | 24.576 | 0.1 to 100 |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
No Nuke class. In a .nk file this node is written as an Oink node that Nuke will not recognise.
