CyclesRender

Node	CyclesRender
Type id	`OC_N_cyclesrender`
Menu	3D › CyclesRender
Nuke class	none: saved in .nk files as an Oink node
Code	`opencomp_core/nodes/three_d/render_nodes.py`

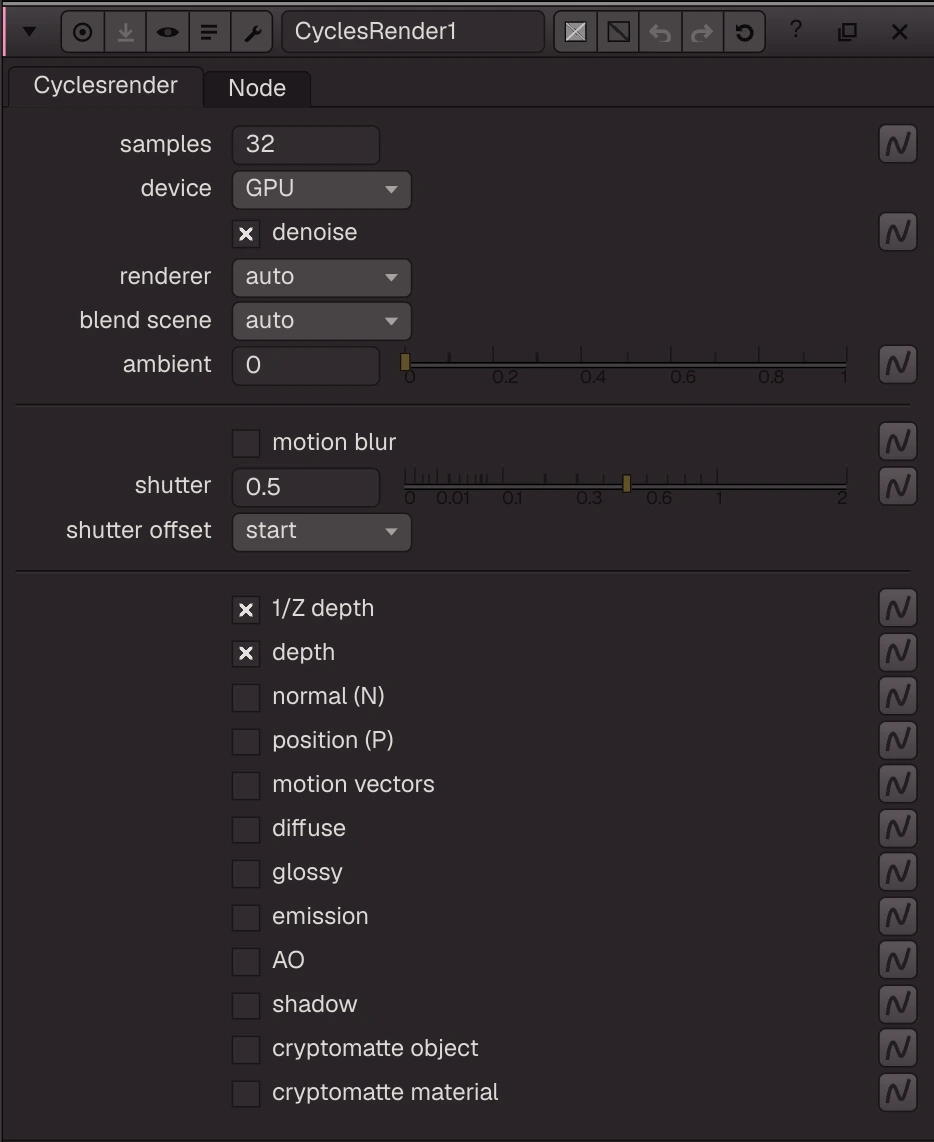

CyclesRender properties

Inputs and outputs

Panel tab Cyclesrender, in panel order.

Knob	Label	Type	Default	Range / values
`samples`	samples	float	`32`	1 to 4096 (integer)
`device`	device	menu	`GPU`	GPU, CPU
`denoise`	denoise	bool	`true`
`renderer`	renderer	menu	`auto`	auto, hdcycles (hdCycles), bridge (Blender bridge)
`blend_mode`	blend scene	menu	`auto`	auto, exact (exact (Blender)), fast (fast (in-app Cycles))
`render_path`	render path	info
`ambient`	ambient	float	`0`	0 to 1
`motion_blur`	motion blur	bool	`false`
`shutter`	shutter	float	`0.5`	0 to 2
`shutteroffset`	shutter offset	menu	`start`	start, centred, end
`one_over_z`	1/Z depth	bool	`true`
`output_depth`	depth	bool	`true`
`output_normal`	normal (N)	bool	`false`
`output_position`	position (P)	bool	`false`
`output_motion`	motion vectors	bool	`false`
`output_diffuse`	diffuse	bool	`false`
`output_glossy`	glossy	bool	`false`
`output_emission`	emission	bool	`false`
`output_ao`	AO	bool	`false`
`output_shadow`	shadow	bool	`false`
`output_crypto_object`	cryptomatte object	bool	`false`
`output_crypto_material`	cryptomatte material	bool	`false`

Knob	Label	Type	Default	Range / values
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string

No Nuke class. In a .nk file this node is written as an Oink node that Nuke will not recognise.
