VectorDistort
VectorDistort: paint or patch the reference frame (Source), connect AIVectorGenerator to SmartVector, and the paint follows the motion through the shot.
VectorDistort: paint or patch the reference frame (Source), connect AIVectorGenerator to SmartVector, and the paint follows the motion through the shot. Occluded pixels drop out (occlusion matte). st-map outputs give the warp itself. Frame Distance picks how far apart the vectors are; a missing distance falls back to 1 frame.
| Node | VectorDistort |
|---|---|
| Type id | OC_N_vectordistort |
| Menu | Transform › VectorDistort |
| Nuke class | none: saved in .nk files as an Oink node |
| Code | opencomp_core/nodes/ai/aimotion.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Source | image |
| input 1 | SmartVector | image |
| output 0 | Image | image |
Knobs

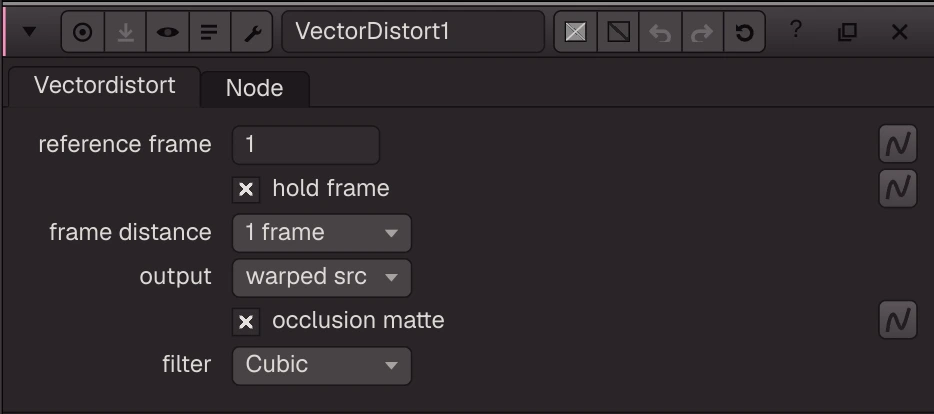

Panel tab Vectordistort, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
reference_frame | reference frame | float | 1 | -100000 to 100000 (integer) | ||
hold_frame | hold frame | bool | true | Warp Source at the reference frame (else the current frame) | ||
frame_distance | frame distance | menu | 1 | 1 (1 frame), 2 (2 frames), 4 (4 frames), 8 (8 frames), 16 (16 frames) | Largest jump per step (needs smartvector_fNN_v01 layers) | |
output | output | menu | warped | warped (warped src), stmap (st-map), stmap_inverse (st-map inverse) | ||
occlusion | occlusion matte | bool | true | Drop pixels that were hidden (or left the frame) on the way | ||
filter | filter | menu | cubic | cubic (Cubic), bilinear (Bilinear) |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
No Nuke class. In a .nk file this node is written as an Oink node that Nuke will not recognise.
