OCIODisplay
OCIODisplay — apply an OCIO display / view transform.
| Node | OCIODisplay |
|---|---|
| Type id | OC_N_ociodisplay |
| Menu | Color › OCIODisplay |
| Nuke class | OCIODisplay |
| Code | opencomp_core/nodes/color/colorspace_nodes.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | mask | image |
| output 0 | Image | image |

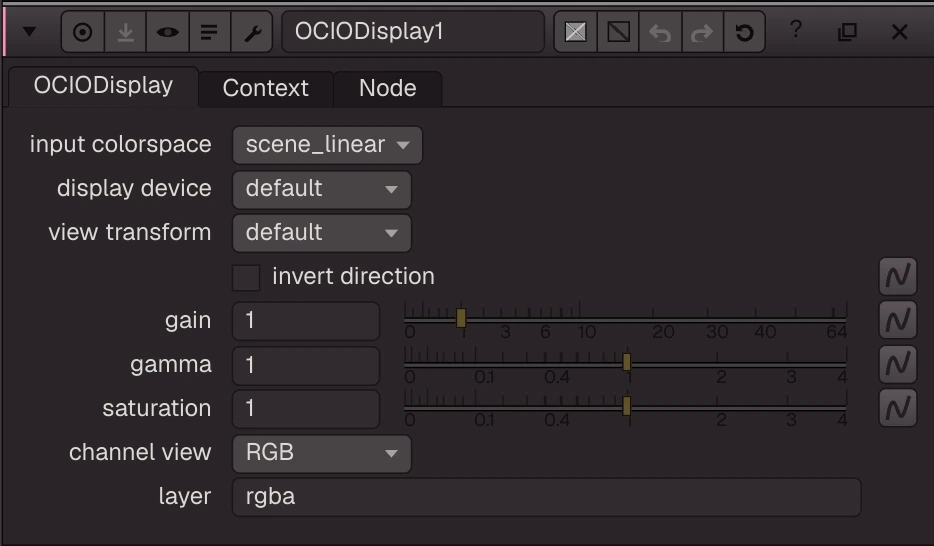

Knobs
Panel tab OCIODisplay, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
colorspace | input colorspace | menu | scene_linear | scene_linear | colorspace | |
display | display device | menu | default | default | display | |
view | view transform | menu | default | default | view | |
invert | invert direction | bool | false | invert | ||
gain | gain | float | 1 | 0 to 64 | gain | |
gamma | gamma | float | 1 | 0 to 4 | gamma | |
saturation | saturation | float | 1 | 0 to 4 | saturation | |
channel_selector | channel view | menu | RGB | RGB, R, G, B, A, Luminance | channel_selector | |
layer | layer | text | rgba | layer | ||
key1 | key1 | text | key1 | |||
value1 | value1 | text | value1 | |||
key2 | key2 | text | key2 | |||
value2 | value2 | text | value2 | |||
key3 | key3 | text | key3 | |||
value3 | value3 | text | value3 | |||
key4 | key4 | text | key4 | |||
value4 | value4 | text | value4 |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
channels | Channels | string | rgba | Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch> | ||
mask_channel | Mask | string | none | Mask channel, e.g. rgba.alpha (none = no mask) | ||
invert_mask | Invert | boolean | false | invert_mask | ||
inject | inject | boolean | false | Copy the mask into mask.a for nodes downstream | ||
fringe | fringe | boolean | false | Only apply the effect at the edges of the mask | ||
unpremult | (Un)premult by | enum | none | none, rgba.alpha | ||
invert_unpremult | invert | boolean | false | (Un)premultiply by 1 - alpha | ||
mix | Mix | float | 1 | 0 to 1 |
Nuke equivalent
Imports from and exports to Nuke's OCIODisplay.
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
