Project3DShader
Project3DShader node.
| Node | Project3DShader |
|---|---|
| Type id | OC_N_project3dshader |
| Menu | 3D › Project3DShader |
| Nuke class | Project3DShader (also imports Project3D, Project3D2) |
| Code | opencomp_core/nodes/three_d/scene_ops.py |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | img | image |
| input 1 | cam | scene |
| output 0 | Image | image |
Knobs

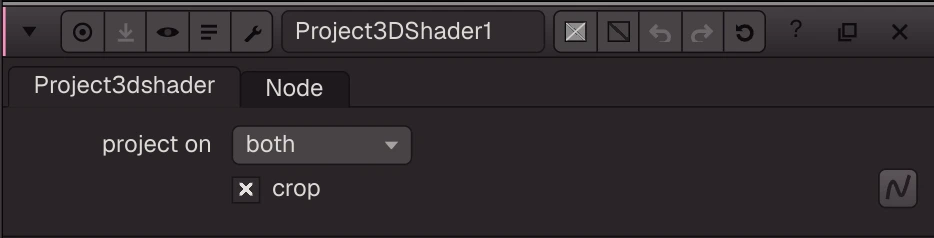

Panel tab Project3dshader, in panel order.
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
project_on | project on | menu | both | both, front, back | project_on | |
crop | crop | bool | true | crop |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | Nuke knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Nuke equivalent
Imports from and exports to Nuke's Project3DShader (Project3D, Project3D2 also import to it).
Nuke knobs not in this list import as a knob of the same name, or are kept unchanged for export. See .nk import.
